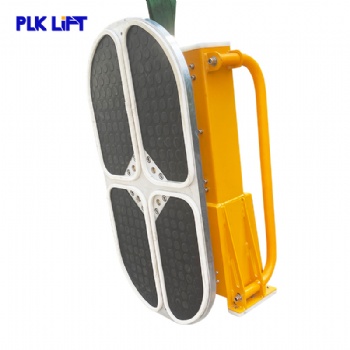

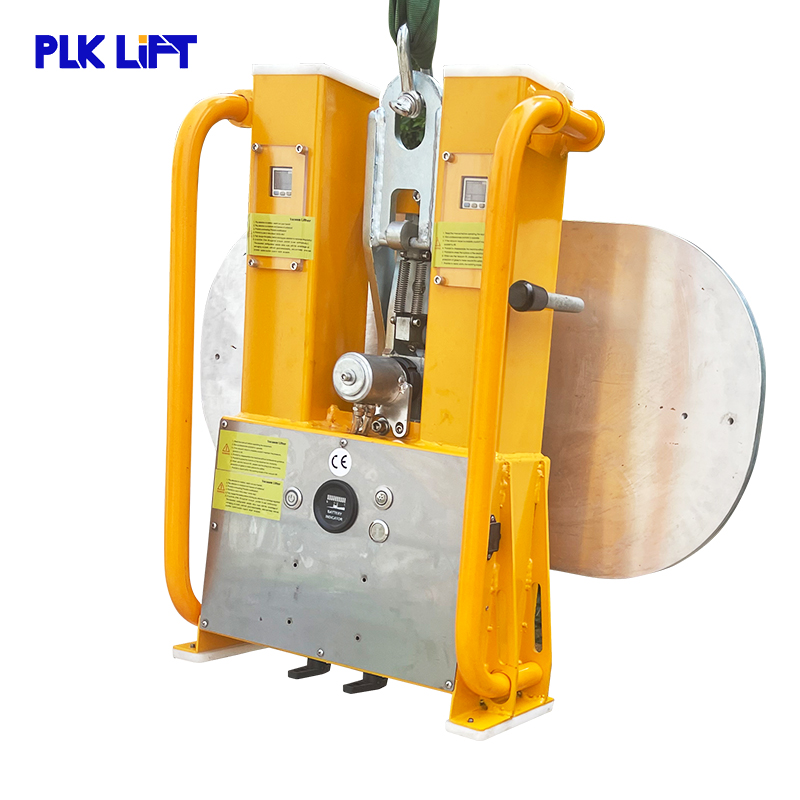

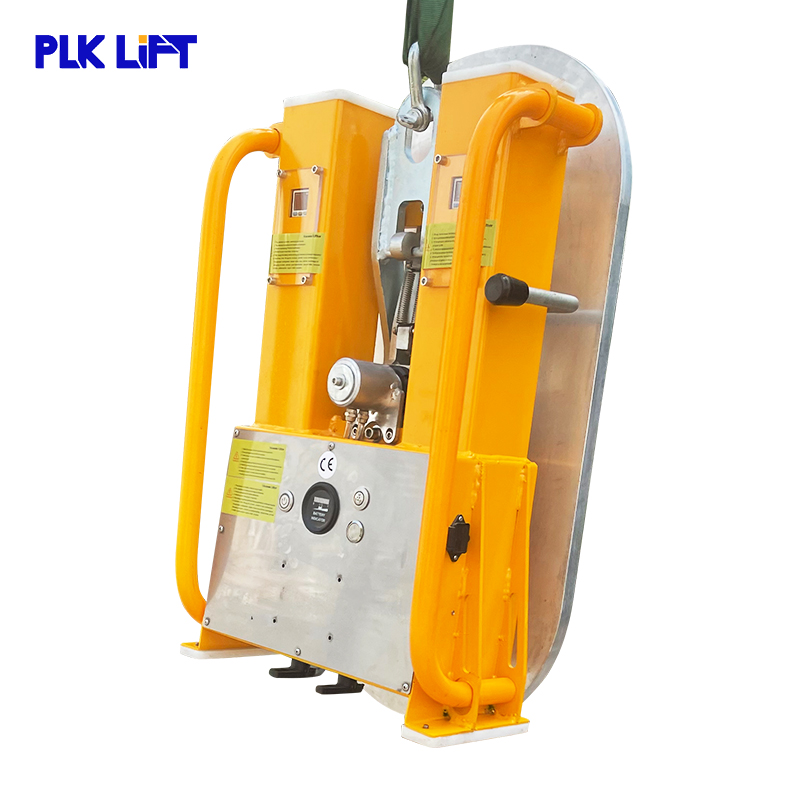

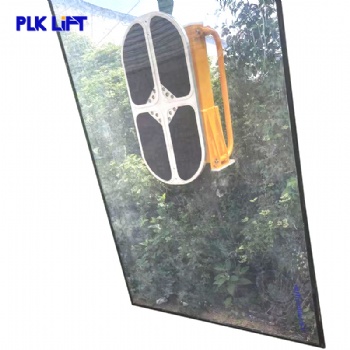

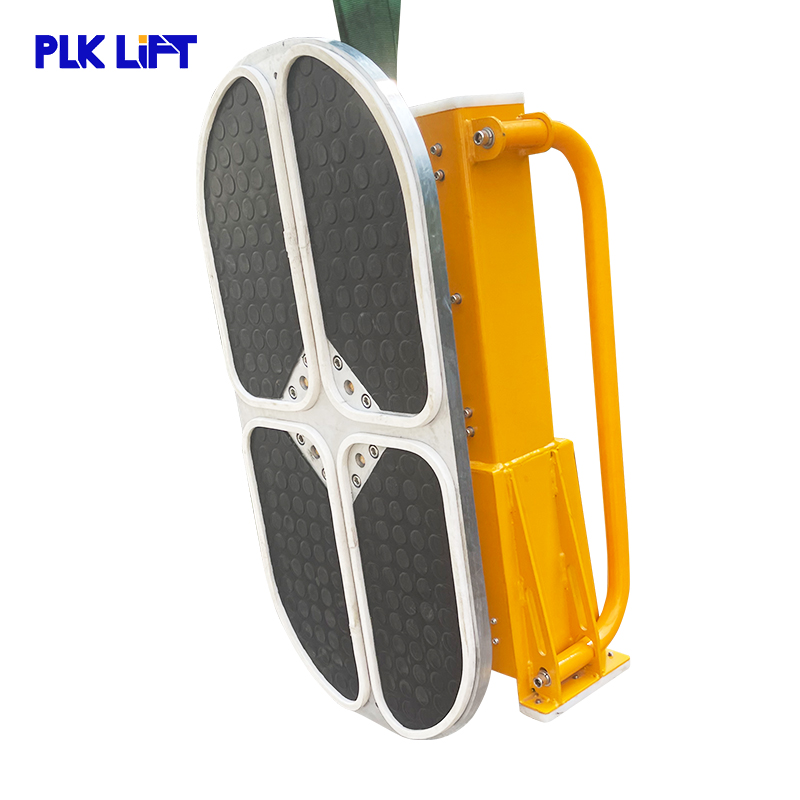

GL-SC Single large suction cup vacuum lifter

It is a very compact vacuum lifter for the installation of glass and sandwich wall panels in a fast and efficient way. For fast, easy, and hassle-free installation of horizontal and vertical wall panels.  Rotatable through 360° with locking facility at each 90°; Tiltable through 90°.

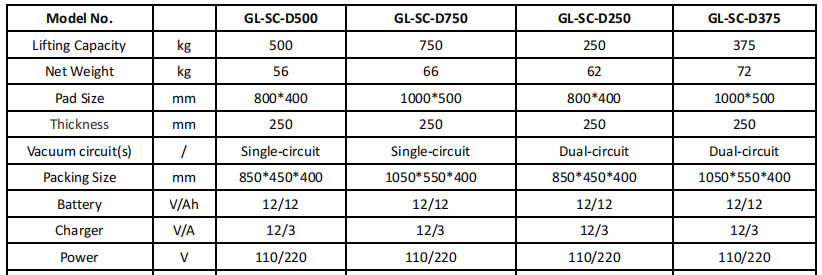

Standard models:

Features and advantages:

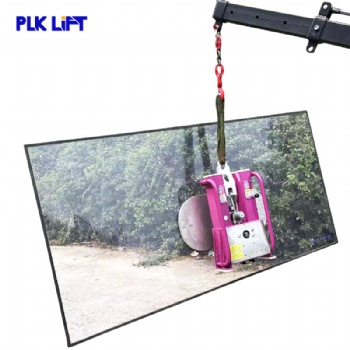

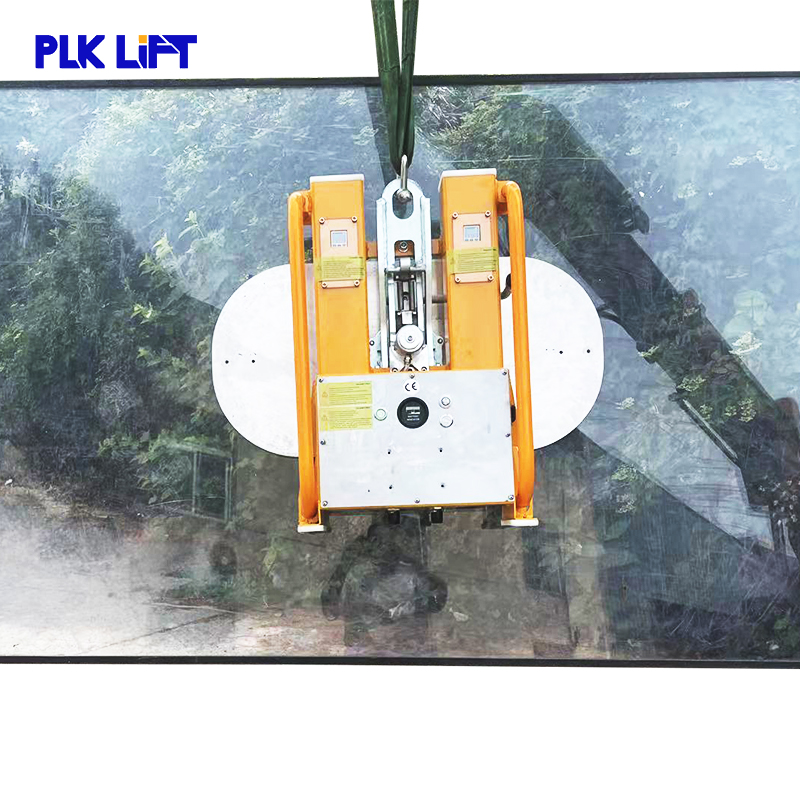

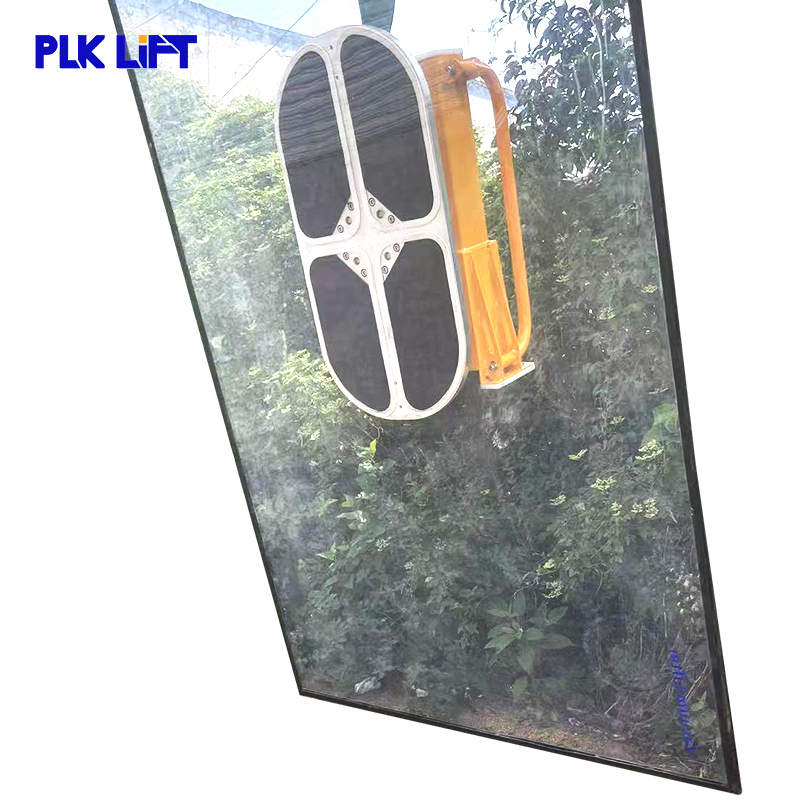

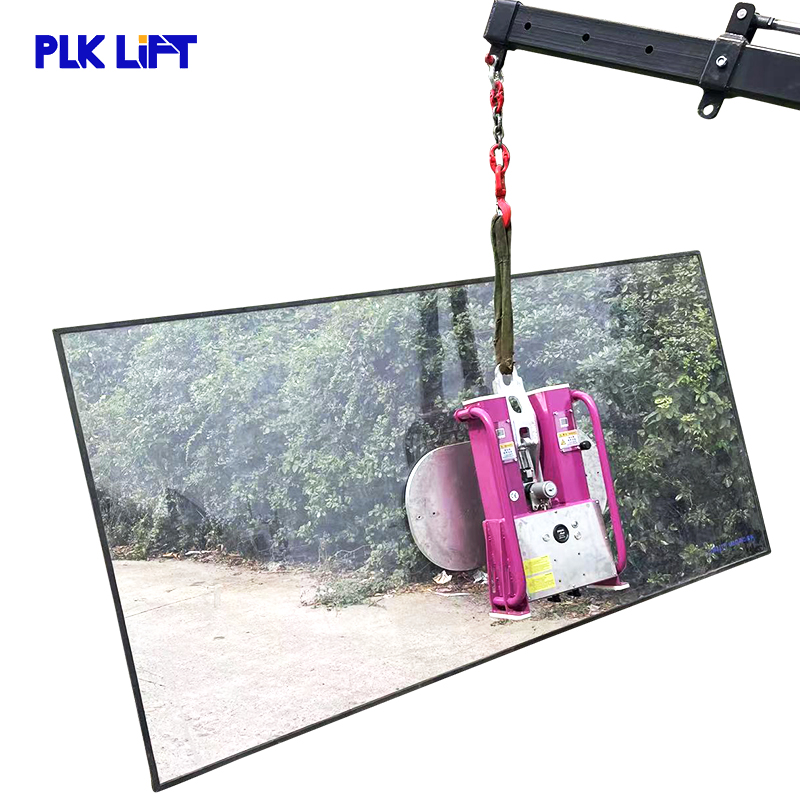

1.Sealed cover for components protection,safe and reliable. Usually copperated with bridge crane to use in glass deep processing and handling job, or with cantilever crane to use in glass curtain wall installation job .

2.Adjustable type, can be changed the position of the suction cup to absorb glass of different shapes and sizes (also can be customized according to the glass size)

3.Manually rotated 360 degree, with locking facility at each 90 degree, tiltable 90°manually, electric inhale and exhale.

4.Adopt American THOMAS vacuum pump and high quality maintenance-free battery, no need the air source or power supply during use.

5.Japan Panasonic digital display vacuum pressure switch , battery fuel gauge, clearly monitor the safty use.

6.With vacuum pressure auto supply system, during handling glass, ensure the whole vacuum system maintained at a relatively constant safety pressure value

7.Equipped with the power-cut but pressure-keeping device and alarm device. If power failure accidently,the pressure-keepping function can extendthe handling time and make the use safer.

8.Equipped with 12V backup battery, can be replaced in time to ensure the progress of the project.

9.is suitable for the installation of sandwich panels up to a weight of 750 kg or a length of 12 meters. The vacuum lifter is also equipped with a single- or dual-circuit safety system,and the wireless radio remote control for optional. The battery has a charging time of about six hours, after which you can work with it all day without problems.

Offer OEM & ODM service,according to different materials size and weight. Please inform us the materials you want to lift,as well as size and weight to get a proper proposal.
